Forschungsflugzeug Remos GX

messWERK betreibt ein eigenes Forschungsflugzeug vom Typ Remos GX, das mit einem umfangreichen Messsystem für alle atmosphärischen Parameter, Flugzeug- und Triebwerksdaten ausgestattet ist. Darüber hinaus verfügt das Flugzeug über ein Servosystem für alle Primärsteuerungen (Fly-by-wire) mit dem auch dynamischen Manöver möglich sind.

Dieses Forschungsflugzeug wird für interne Sondenentwicklung und -kalibrierung sowie als Messplattform für Forschungsprojekte mit externen Kunden im Bereich der Meteorologie und Flugreglerentwicklung genutzt.

Technical Data:

Wingspan:9.32m MTOW:600kg
Length:6.48mEmpty weight:360kg
Height:2.28mVNE:134kn
Wing Area:10.97m2Load factor:+4/-2g
Engine:912 ULS, 100 PS

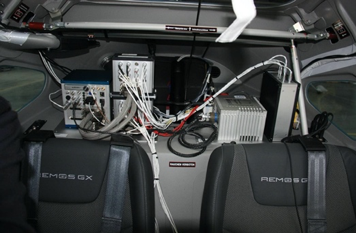

Installed Research Equipment:

  • Wing boom with an air data probe measuring static and dynamic pressure, static air temperature, humidity, angle of attack and side slip angles by pressure as well as mechanical vanes
  • Wing boom with swivel head air data probe for reference pressure measurements
  • High precision dual antenna INS/GNSS navigation system

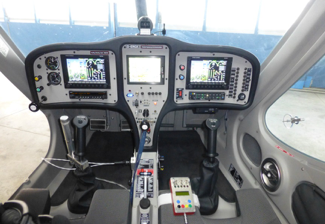

  • Servo system on all controls and joystick in cockpit for full featured fly-by-wire
  • Sensors for the pilot inputs; position of all controls, stick and rudder pedal forces
  • Position of control surfaces
  • Extensive time synchronized data logging, recording all sensor, engine and navigation data
  • Secondary generator and battery for the experimental system 30A@12V

Used for:

  • Calibration of air data probes
  • Testing experimental flight controllers
  • Developing test procedures and maneuvers for certification flights
  • Developing calibration procedures for onboard air data systems
  • Testing flight test measurement equipment
  • Meteorological measurements e.g. wake of wind turbines
  • Research projects e.g. gust alleviation using remote wind measurement (LiDAR)
